● dual-band wireless concurrent rate of 1774mbps;

● 1*100/1000mbps wan port, 3*100/1000mbps lan port;

● 256mb memory 128mb flash large storage design;

● compared with wi-fi 5, the average delay of 40ms is reduced to less than 10ms;

● reduce signal search time and reduce power consumption by 30%;

● compatible with all terminal devices on the market that support wifi6;

hardware specifications
wired standardieee802.3、ieee802.3u
main chipmt7621a
wifi chip5g: mt7905dan； 2.4g: mt7975dn
flash128m
memory256m
port1*10/100/1000   mbps wan port， 3*10/100/1000   mbps lan port
antenna4*5dbi external antenna
button1*reset / wps button， 1*mesh button
power supplyenter： 200-240v—50/60hz；output： dc 12v==1a
led indicator1*sys
dimensions (without antenna)32*135*215mm
weightgross weight： 760g ；net weight： 382g
software function
connection typepppoe, dynamic ip, static ip; support automatic detection of access mode
operating modewireless router mode; repeater mode; wisp mode

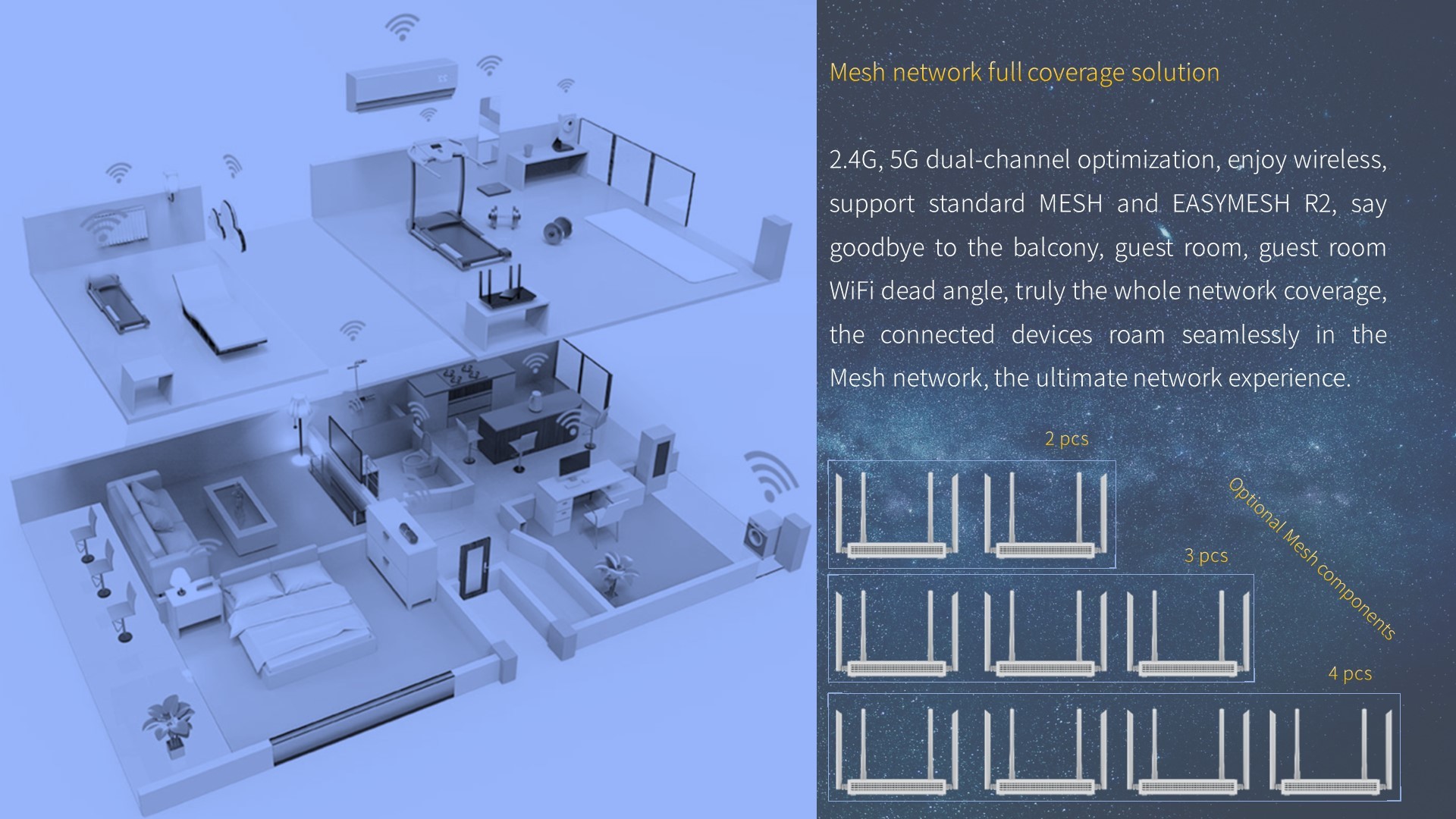

mesh networkfast networking by keys; wireless configuration delivery
dhcpdhcp server; dhcp client list; dhcp reservation
vpnpptp client; l2tp client
ip协议ipv4 ; ipv6
other functionsdual frequency integration; guest network, mac address cloning, syslog; configuration backup and restore, firewall
wireless standardieee 802.11ax/ac/a/n 5ghz , ieee   802.11ax/b/g/n 2.4ghz
data rate5ghz：1201mbps ；   2.4ghz：574mbps
frequency2.4ghz&5ghz
basic skillsssid broadcast: enable/disable; multiple input multiple output
wireless network securitywpa-psk、wpa2-psk、wpa/wpa2-psk；   wpa3-sae/wpa2-psk ；wireless security: enable/disable；   wps(wifi protected settings) fast encryption
other
temperatureoperating temperature：0 ℃ ～45 ℃ ；storage temperature：-40   ℃ ～70 ℃ 。
humidityworking humidity：10% ~ 90% rh no condensation；storage humidity：5% ~ 90%rh no condensation.
certificateccc、srrc、ce
package contentswireless router*1; power adapter*1; installation guide*1; ethernet cable*1
