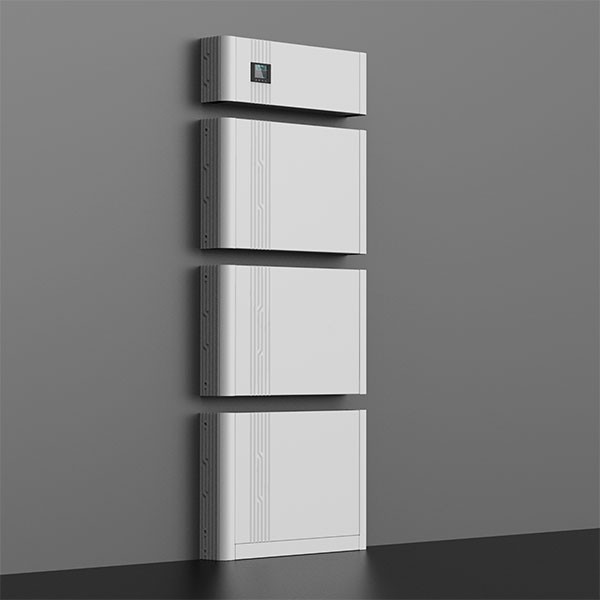

● smart stack-style installation.
● one single battery module is 5120wh. 2~6 packs (10kwh ~30kwh) for your optional.
● 6000 cycles, life time can be over 15 years.
● matched inverter: guruwat, goodwe, sofar, deye, voltronic power, east, sma
● adorable id design.
● max support 16 modules in parallel, within 10 modules in parallel is recommend.
● a combiner box is required when the discharge current exceeds 100a.
| item no. | klf-b5k-a2 | klf-b5k-a3 | klf-b5k-a4 | klf-b5k-a5 | klf-b5k-a6 |
|---|---|---|---|---|---|
| battery module no. | klf-b5k-a | ||||
| module qty | 2 | 3 | 4 | 5 | 6 |
| rated voltage(v) | 51.2v | ||||
| votage range (v) | 44.8v ~56v | ||||
| rated energy(wh) | 10240wh | 15360wh | 20240wh | 25600wh | 30720wh |
| max. discharge current(a) | 200a | ||||
| dimensin: w*h*d (mm) | 674*170*1100 | 674*170*1520 | 1348*1170*1310 | 1348*170*1520 | 1348*170*1520 |
| weight (kg) | 124kgs | 176kgs | 228kgs | 280kgs | 332kgs |
| environment parameter | |||||
| ip | ip55 | ||||
| charge temperature range(℃） | 0-45 (℃） | ||||
| discharge temperature range(℃） | -20~60 (℃） | ||||
| installation method | floor-mounted | ||||
| service life | |||||
| cycle life (times) | >6000 (0.5c @ 25℃, 80% dod） | ||||
| design life (year) | 15 years | ||||
| certification | |||||
| safety & certification | ce, emc, tuv(iec62619), ul1973) | ||||
| transportation | un38.3 | ||||
