● 10kw pure sine wave output. 15kw~20kw is for optional.
● the capacity is 10kwh. 15kwh~30kwh is for optional.
● lfp battery cell, cycle life is over 6000 times, working life is over 15 years.

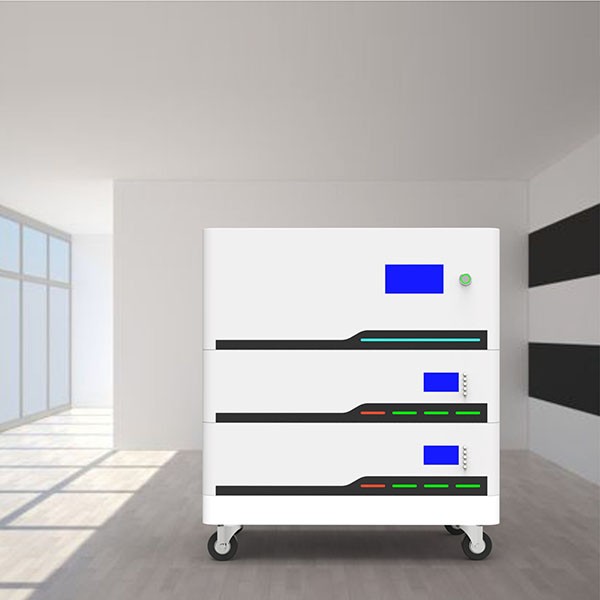

●stack-type battery pack installation.
●attractive id design.
| item no. | klf-h10k-a |
|---|---|
| inverter main parameter | |
| rated output power | 10000w |
| max charge power | 4608w/80a@57.6v &110-220vac/50hz |
| pv input（dc） | |
| rated dc voltage | 60-150vdc |
| max dc voltage | <150vdc |
| start-up voltage | 3v over the voltage of the battery pack |
| mppt input voltage range | 60-150vdc |
| mppt tracker quantity | 1 |
| max input current | 60a |
| off-grid output（ac） | |
| rated output voltage | 220vac/110vac |
| output voltage range | ±3%rms |
| max output power | 15000w @ 20s |
| max transfer efficiency（dc/ac） | >90% |
| off-grid switching time | <4ms(ac到dc)/<8ms(dc到ac) |
| ac input | |
| auto start-up voltage | 220vac/110vac |
| accetable voltage range | 185-255vac±4% / 90-130vac±4% |
| max input current | 68a/136a |
| battery pack output（ac） | |
| rated output voltage | dc42-60v |
| transfer efficiency（dc to ac） | >90% |
| battery spec. | |
| battery type | lfp |
| rated voltage | 51.2vdc |
| battery capcity（ah) | 100ah |
| storage power (wh) | 5120wh |
| charge voltage（fc） | 57.6vdc |
| discharge cut-off voltage（fd） | 42vdc |
| protection | bms, circuit breake, inverter |
| internal resistance（ac） | <25mω |
| cycle life | 6000 cycles |
| warantee time | 3 years |
| battery pack quantity | 2pc |
| other parameter | |
| product size(l*w*h) | 626*303.4*665.5mm |
| product weight | 112kg |
| installation method | floor-mounted |
| operating temperature/ humidity range | -10～ 45℃ / 5-95% |
| communication | rs232/rs485/can |
| ip level | ip20 |
