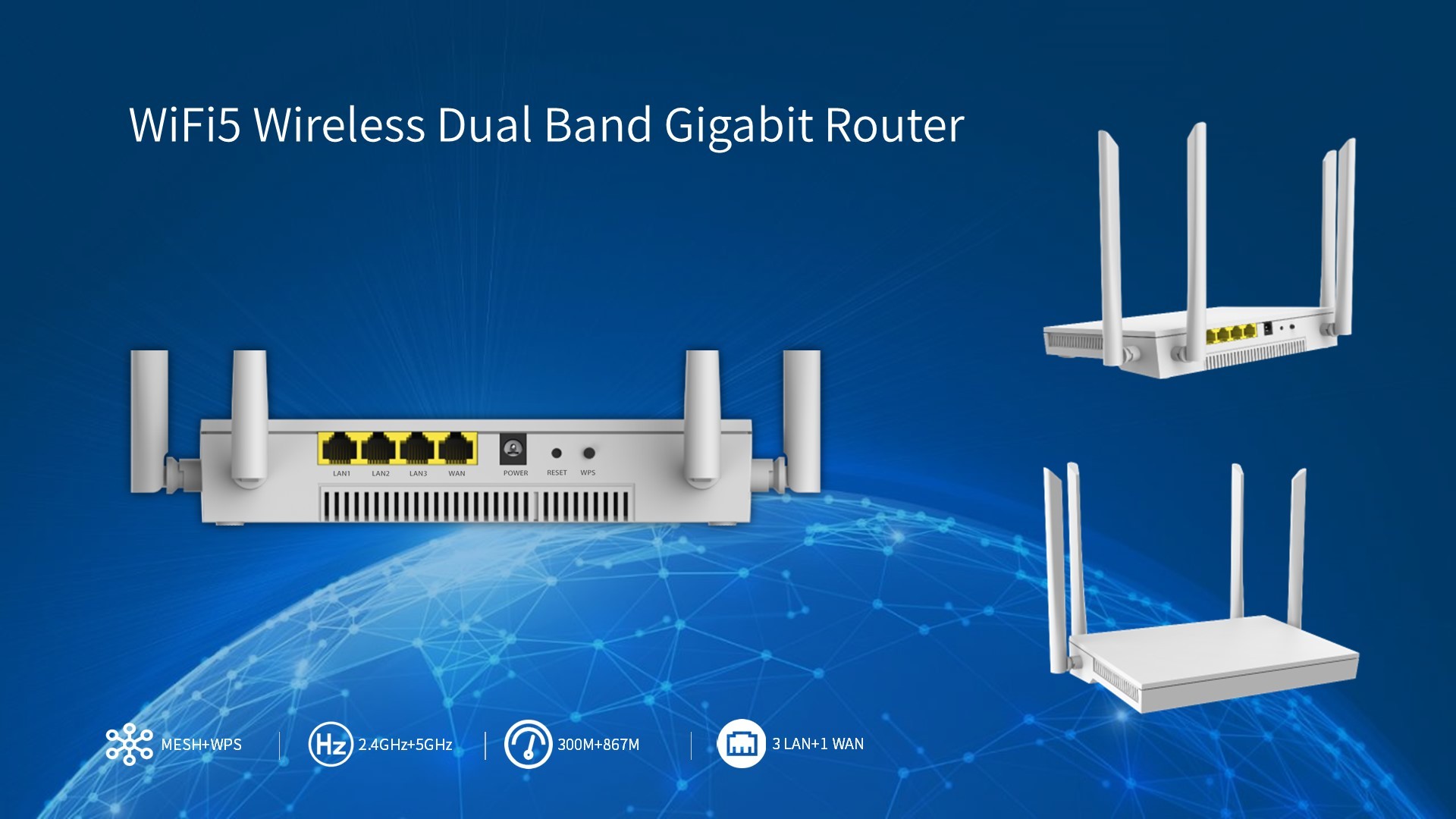

● dual-band wireless concurrent rate of 1774mbps;
● 1*10/100/1000mbps wan port, 2*10/100/1000mbps lan port;
● 4*5dbi dual-band omnidirectional antenna;
● 64mb memory 16mb flash design;
● mu-mimo technology, can communicate with multiple devices at the same time.
| hardware specifications | |
|---|---|
| wired standard | ieee802.3、ieee802.3u |
| main chip | rtl8197fh |
| wifi chip | 5g: rtl8812fh |
| flash | 16m |
| memory | 64m |

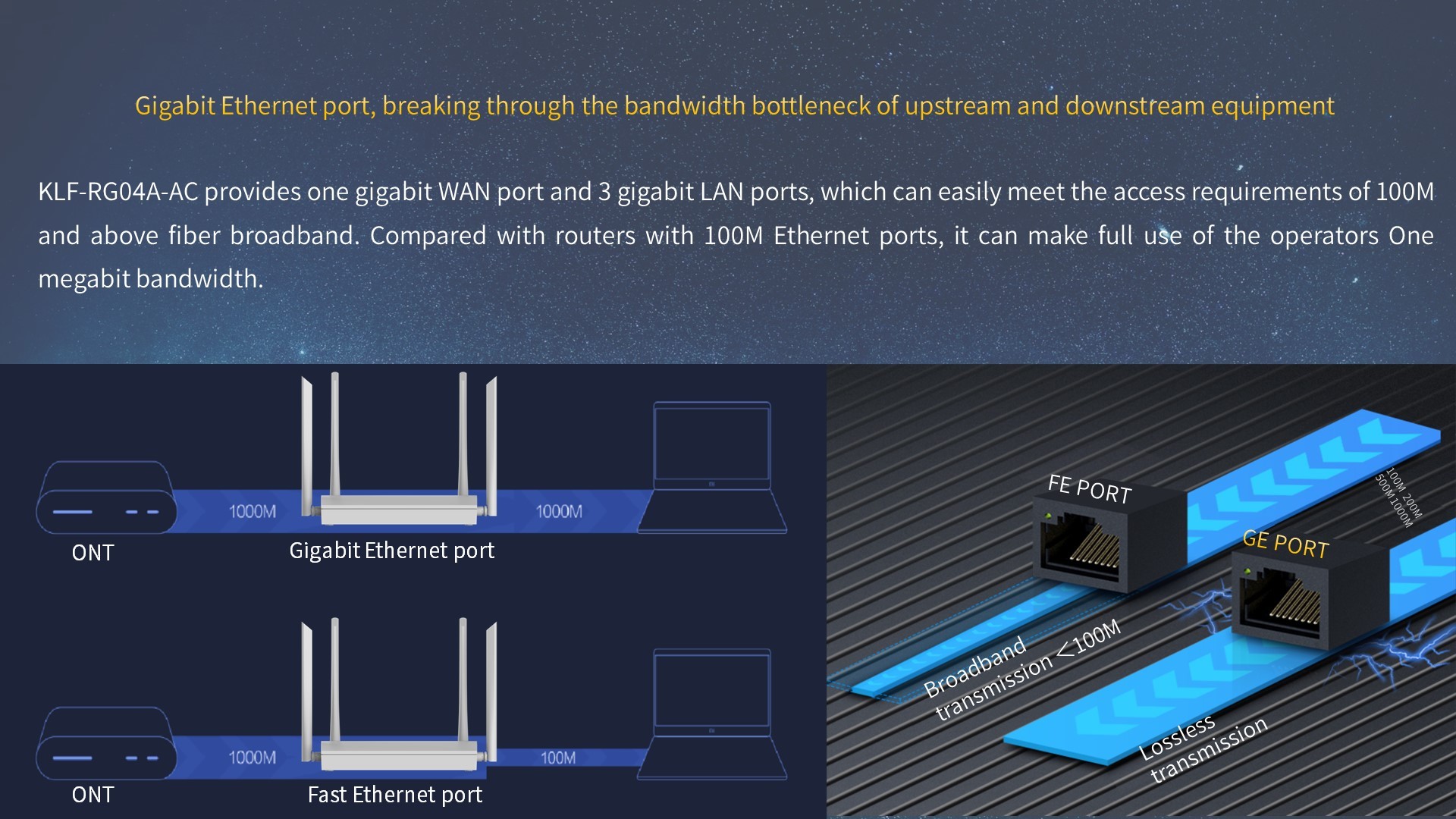

| port | 1*10/100/1000mbps wan port， 3*10/100/1000mbps lan port |
| antenna | 4*5dbi external antenna |
| button | 1*reset button， 1*wps/mesh button |
| power supply | enter： 200-240v—50/60hz；output： dc 12v==1a |
| led indicator | 1*sys |
| dimensions (without antenna) | 183*116*36mm |
| weight | gw：476g；nw：376g |
| software function | |
| connection type | pppoe, dynamic ip, static ip; support automatic detection of access mode |
| operating mode | wireless router mode; repeater mode; wisp mode |

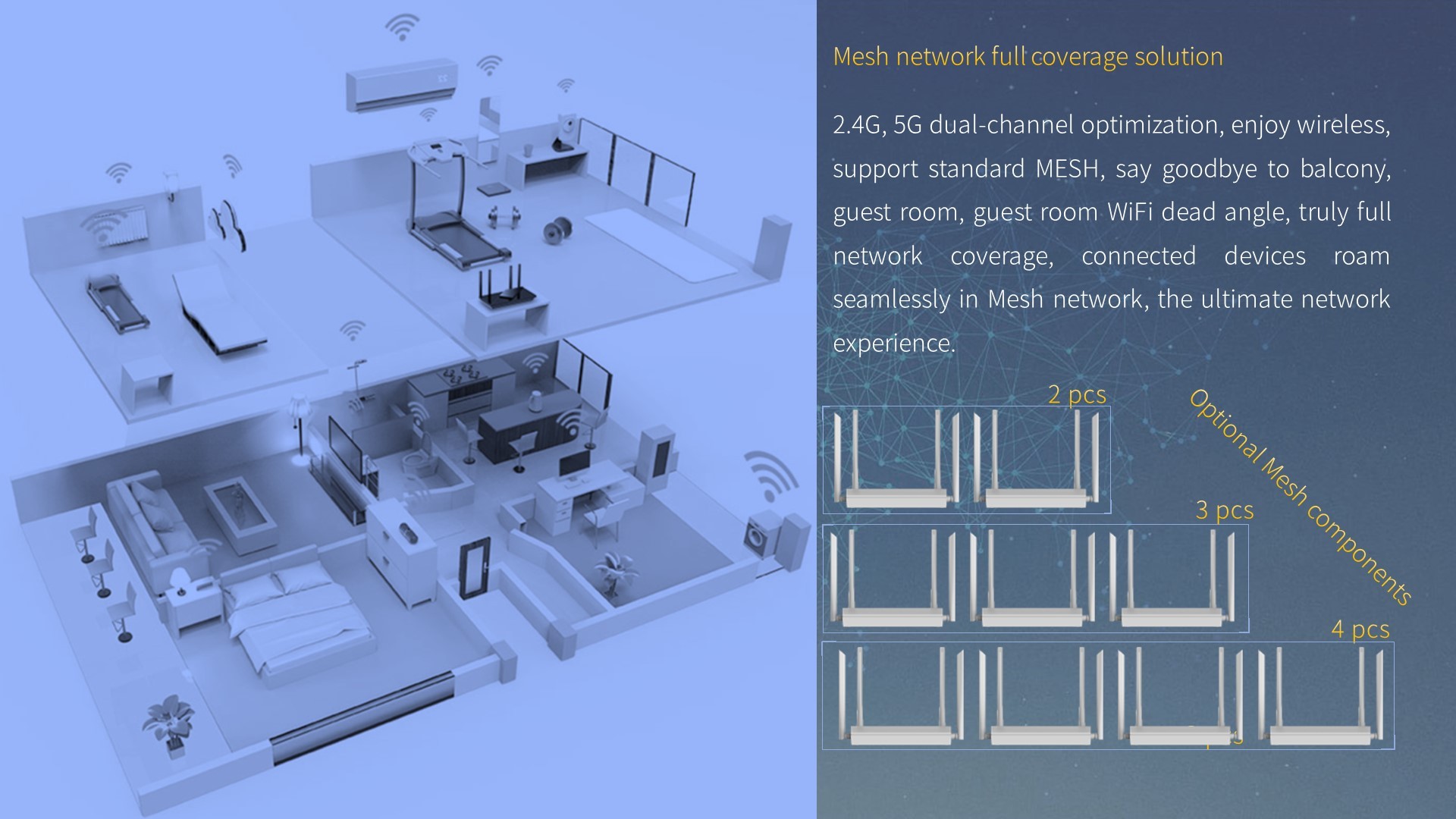

| mesh network | fast networking by keys; wireless configuration delivery |
| dhcp | dhcp server; dhcp client list; dhcp reservation |
| vpn | pptp client; l2tp client |
| ip protocol | ipv4 ; ipv6 |
| other functions | dual frequency integration; guest network, mac address cloning, syslog; configuration backup and restore, firewall |
| wireless standard | ieee 802.11n, ieee 802.11g, ieee 802.11b, ieee 802.11a/n/ac |

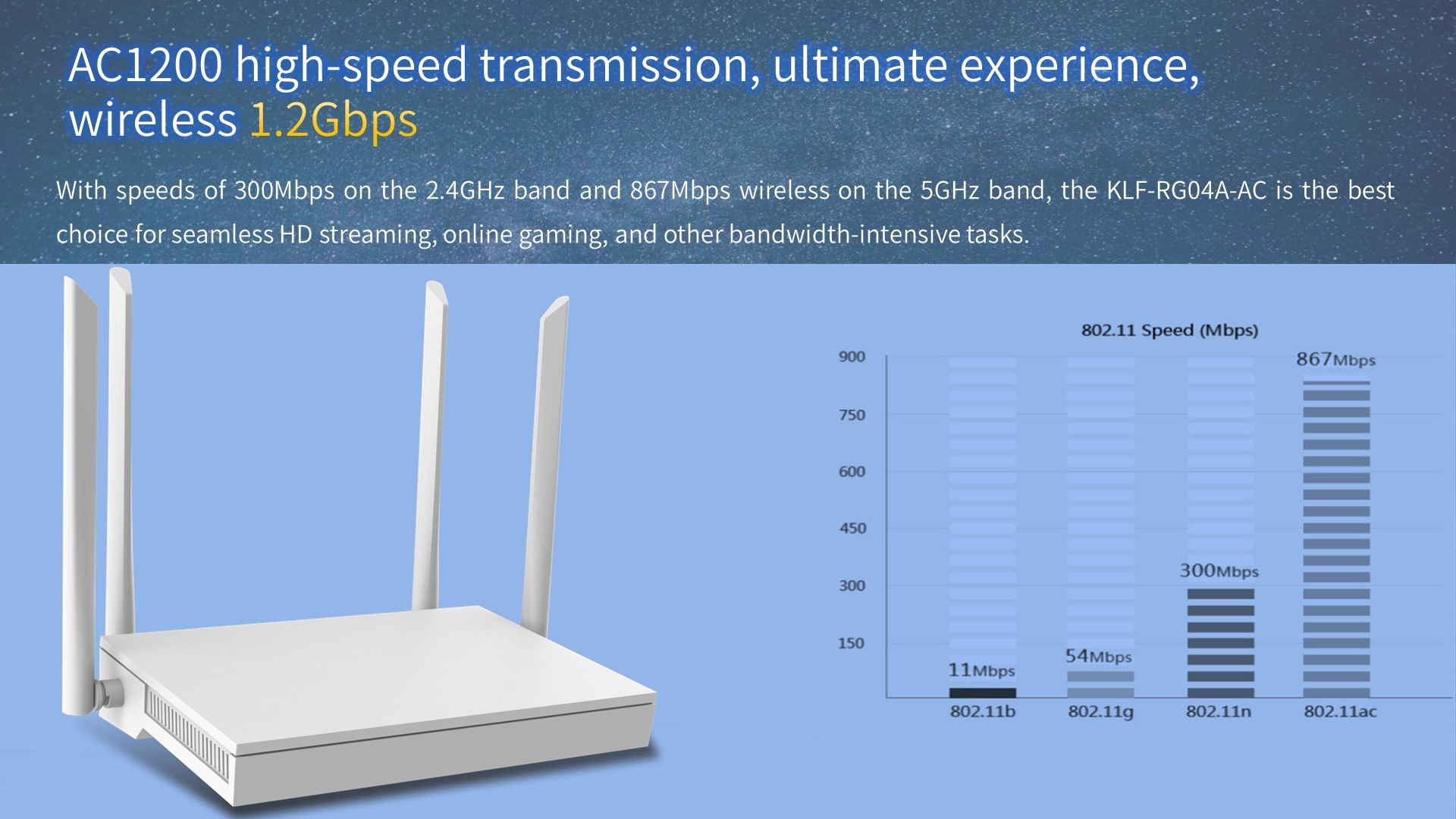

| data rate | 5ghz: 867mbps; 2.4ghz: 300mbps |
| frequency | 2.4ghz&5ghz |
| basic skills | ssid broadcast: enable/disable; multiple input multiple output |
| wireless network security | wpa-psk、wpa2-psk、wpa/wpa2-psk；wireless security: enable/disable; wps (wifi protected setup) fast encryption |
| other | |
| temperature | operating temperature：0 ℃ ～45 ℃ ；storage temperature：-40 ℃ ～70 ℃ 。 |
| humidity | working humidity：10% ~ 90% rh no condensation；storage humidity：5% ~ 90%rh no condensation。 |
| certificate | ccc、srrc、ce |
| package contents | wireless router*1; power adapter*1; installation guide*1; ethernet cable*1 |
